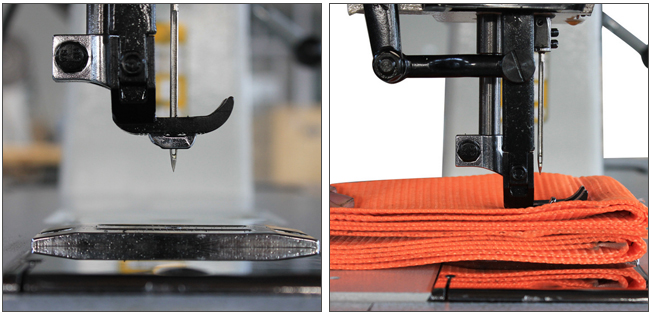

特点:采用上下复合送料方式和筒形缝合,送料力量强劲稳定,能轻易车缝多层厚重特料,线迹精准美观。梭芯容县量大,效率高,压脚提升量可达20毫米。
Characteristics:Up-down compound cloth-giving method and tubular sewing support,strong and stable cloth-giving , easy sewing of multi-layers of thick cloth, artistic and accurate track of thread.large amount of the central thread and high efficiency, pressing foot lifting of 20mm.
用途:可适用于缝制手提袋的手把、棒球手套、运动器材、安全袋、帐篷、座垫、箱包等厚料和极厚料物品。
UsesSuitable for sewing of grips of handbags, gloves for baseball,sports instruments, safety bags, rents, chair cushions and suitcases.
主要技术参数Main Parameters:
缝速 Max.Sewing speed |
800针/分 needles/min |
针距 Max stitch |
11毫米 mm |
使用针 Needle siz |
7×200 7×230 7×250 7×300 |
压脚提升 Presser food lift |
手提 By hand |
14毫米 mm |
膝控 By knee |
20毫米 mm |
操作空间 Opereting |
280×420毫米 mm |
筒径 TUber path |
91毫米 mm |
