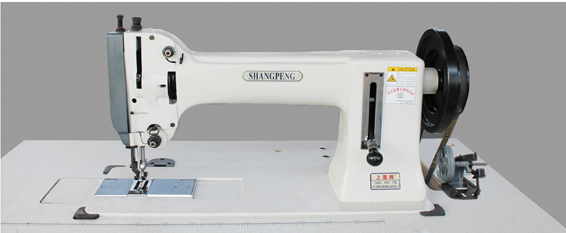

上下同步送料厚料缝纫机 > GB6-180-1 上下同步送料厚料缝纫机



特点:同步送料压脚交叉升降机构,保证在额定范围内的任何长度针距下,缝纫滑性,层缝上下不移位,使制品整齐,线迹美观,连杆挑线机构,使主轴转速得以提高。下送料轴采用滑动轴承,降低了噪音,延长了使用寿命。
Characteristics:Synchronous cloth- giving and pressing- foot going up and down alter nately mechanism to ensure smooth sewing in any stitch and no fold. Thesewing is neat and the track of the thread is artistic.With a connecting rod,he rotatingspeedof the main axle is raised. The bottom cloth-giving axleemploying sliding bearing reduces noise and prolongs working life.
用途:适用于制鞋、沙发、集装袋、安全带、皮革、牛仔服、帐篷等粗线厚料制品。
Uses:Suitable for sewing of shoes, sofa, packing bags, safety belt and rents.
主要技术参数Main Parameters:
   缝纫速度 Sewing speed
   800针/分 needles/min
   针距长度 Stitch length
   12毫米 mm
   压脚提升 Presser food lift
 手提 By hand
   14毫米 mm
 膝控 By knee    22毫米 mm
   操作空间 Opereting
   200×420毫米 mm
   机针型号 Type of needie
   7×200/230/250/300
   针杆行程 Needle bar stroke
   58毫米 mm
